We have faith in the products we develop, test, and promote.
Years of development with industry-known test labs. Years of system development with Underwriters Laboratory.
High-performance materials that lead to savings on total cost of ownership.
We trust Alconex Gold® to power our manufacturing facility every day, and you should trust it in your products too.
Alconex Gold® is an innovative electrical insulation film recognized by UL as a low voltage (240° C) electrical insulation system and a medium/high voltage (220° C) electrical insulation system for dry-type transformers.
The Alconex Gold® wire product has a dielectric strength of 5,700 volts/mil.
The Alconex Gold® product line was created to be used in custom applications where high-performance is needed.
Our customers who choose Alconex Gold® are experiencing cost savings, reduction in size of unit, and production of more efficient units through high dielectric properties, great heat dissipation, and cooler operating temperatures.
Applications where Alconex Gold® is trusted by many
- Dry-Type Transformers
- Specialty Transformers
- Traction Motors
- Electric Motors
- Down The Hole Pump Motors
- Transformer Rebuilding
- Motor Rebuilding
- Lifting Magnets
- Separators
- Induction Coils
- High-Temperature Coils and Relays
- Encapsulated Coils
Alconex Gold® Family of Products

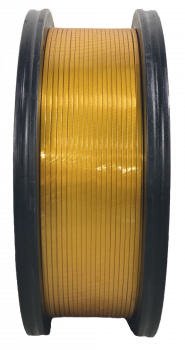

Alconex Gold® Non-Fused
Aluminum
240°C
Polyimide film wrap
Class 240°C LV / 220°C MV-HV
UL System
Insulation Not Fused to Wire
Alconex Gold®
Non-Fused
Copper
240°C
Polyimide film wrap
Class 240°C LV / 220°C MV-HV
UL System
Insulation Not Fused to Wire

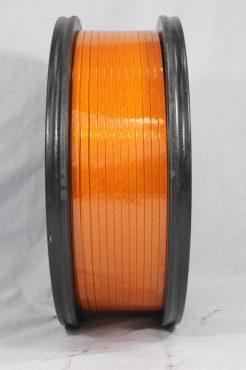

Alconex Gold®
Fused
Aluminum
240°C
Polyimide film wrap
Class 240°C LV / 220°C MV-HV
UL System
Insulation Fused to Wire
Alconex Gold®
Fused
Aluminum
240°C
Polyimide film wrap
Class 240°C LV / 220°C MV-HV
UL System
Insulation Fused to Wire

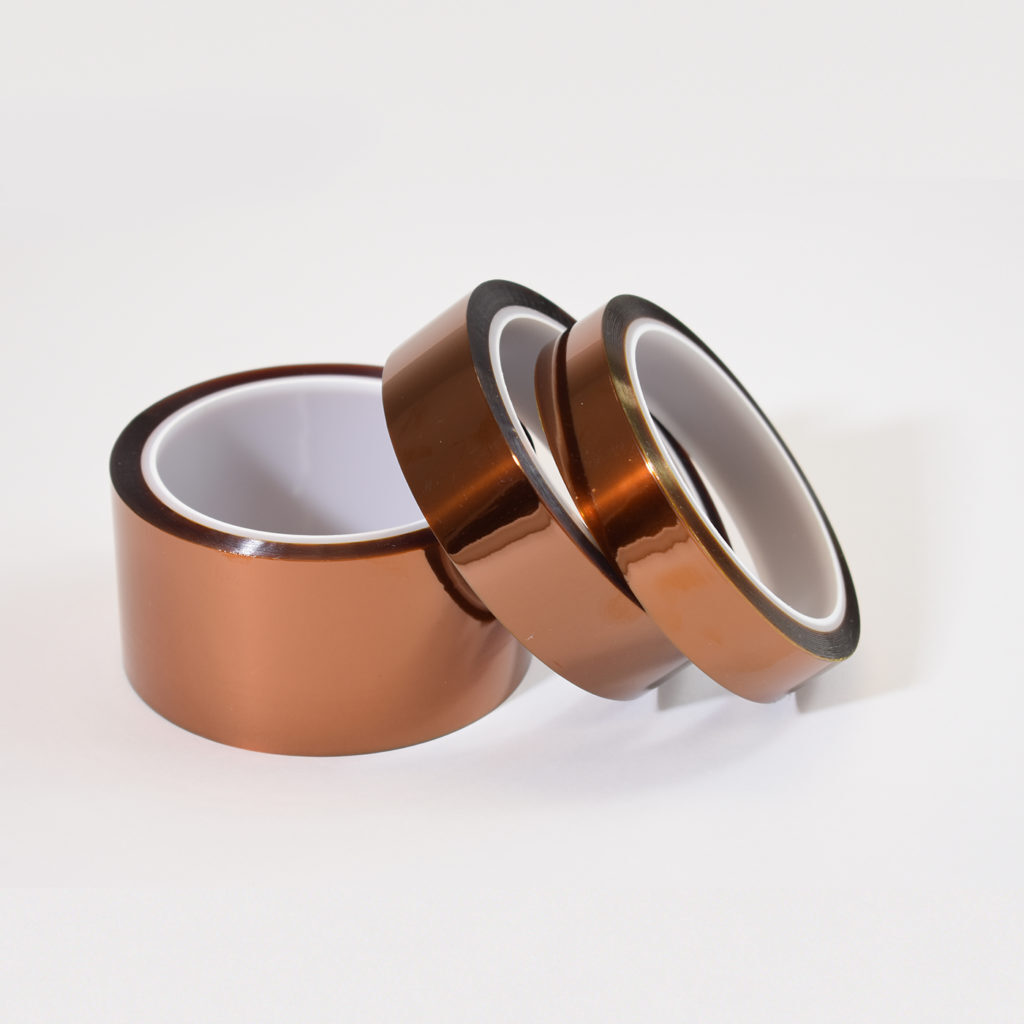

Silicone Adhesive
Alconex Gold®
Tape
Polyimide film with
silicone adhesive
Kapton-equivalent
Variety of thicknesses available
Acrylic Adhesive
Alconex Gold®
Tape
Polyimide film with
acrylic adhesive
Kapton-equivalent
Variety of thicknesses available
Non Adhesive
Alconex Gold®
Tape
Polyimide film without adhesive
Thicknesses range from
0.5 mil to 10 mil
Alconex Gold®
Film Rolls
Layer, High/Low Barrier, Slot Liner applications
Available from 2 mil to 10 mil
